INDUSTRIAL FORCE SENSING
Contactless Force Sensor Evaluation Platform
Measure compression forces
through solid metal without bonded strain
gauges. Designed for industrial monitoring,
load measurement and engineering validation.
Contactless Stress Sensing
High Speed Streaming
Calibration Free
Configurable Excitation
Firmware upgradable
Built on Proven Sensing Technology
AD-TEC’s magnetomechanical sensing platform combines proprietary contactless torque measurement with Texas Instruments magnetic sensing technology to deliver robust, high-precision evaluation performance for eMobility applications.
Powered by Texas Instruments Technology
AD-TEC develops contactless magnetic sensing solutions for torque, force, and current measurement using TI magnetic sensing Technology
Why Choose
ADTEC-FS-0025-EVAL
CONTACTLESS FORCE SENSING
Measures force through solid metal without bonded strain gauges.
CALIBRATION FREE
No periodic recalibration required, reducing maintenance effort.
COMPRESSION
High precision measurements with excellent repeatability.
ROBUST
Built to withstand harsh environments, shock, vibration and extreme conditions.
STRAIN-GAUGE AND ADHESIVE FREE
No strain gauges or adhesives required - simplifies installation and improves reliability.
Sample Price
€ 499
Starting price for evaluation sample configuration.
Volume pricing available for OEM quantities &
integration programs.
Lead Time
4 - 6 Weeks
Depending on production schedule
and availability.
Ready to evaluate in your application?
Price indication and lead time are provided for initial evaluation planning and may vary depending on configuration and availability.
EVALUATION KIT
The AD-TEC Contactless Force Sensor Evaluation Kit is designed to simplify the evaluation of magnetomechanical force sensing technology for industrial force measurement, structural monitoring, automation, and research applications.
The platform combines integrated excitation, high-speed sensing electronics, and real-time data acquisition to demonstrate accurate force measurement without bonded strain gauges, adhesives, or periodic
Key Benifits
- Contactless force sensing
- Compression measurement
- Calibration-free operation
- No bonded strain gauges or adhesives required
- High-speed acquisition for static and dynamic force measurements
- Designed for industrial evaluation, research, and technology validation
KIT Content

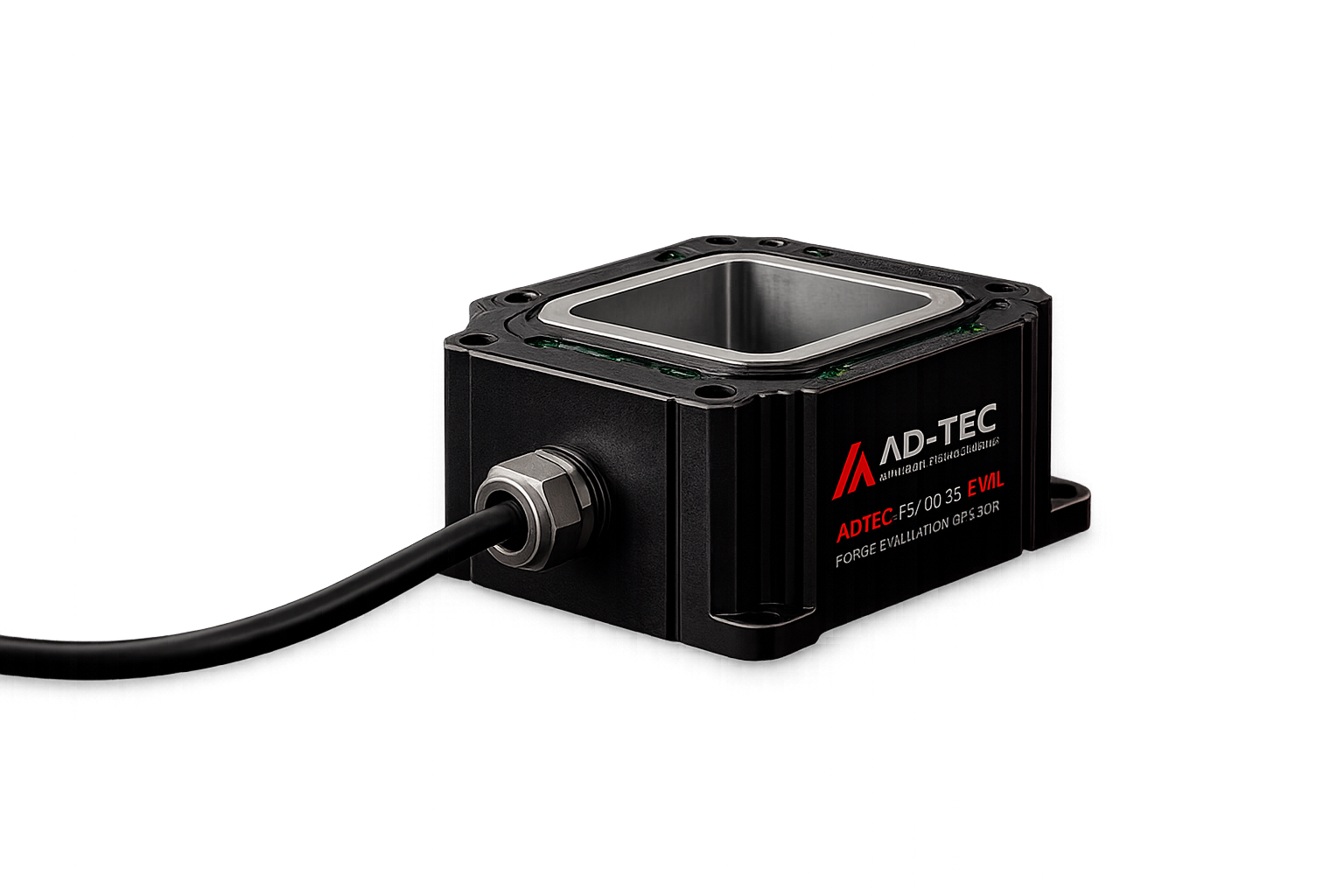

CONTACTLESS FORCE SENSOR Unit
Pre-calibrated Steel Stress Sensor
EVALUATION KIT

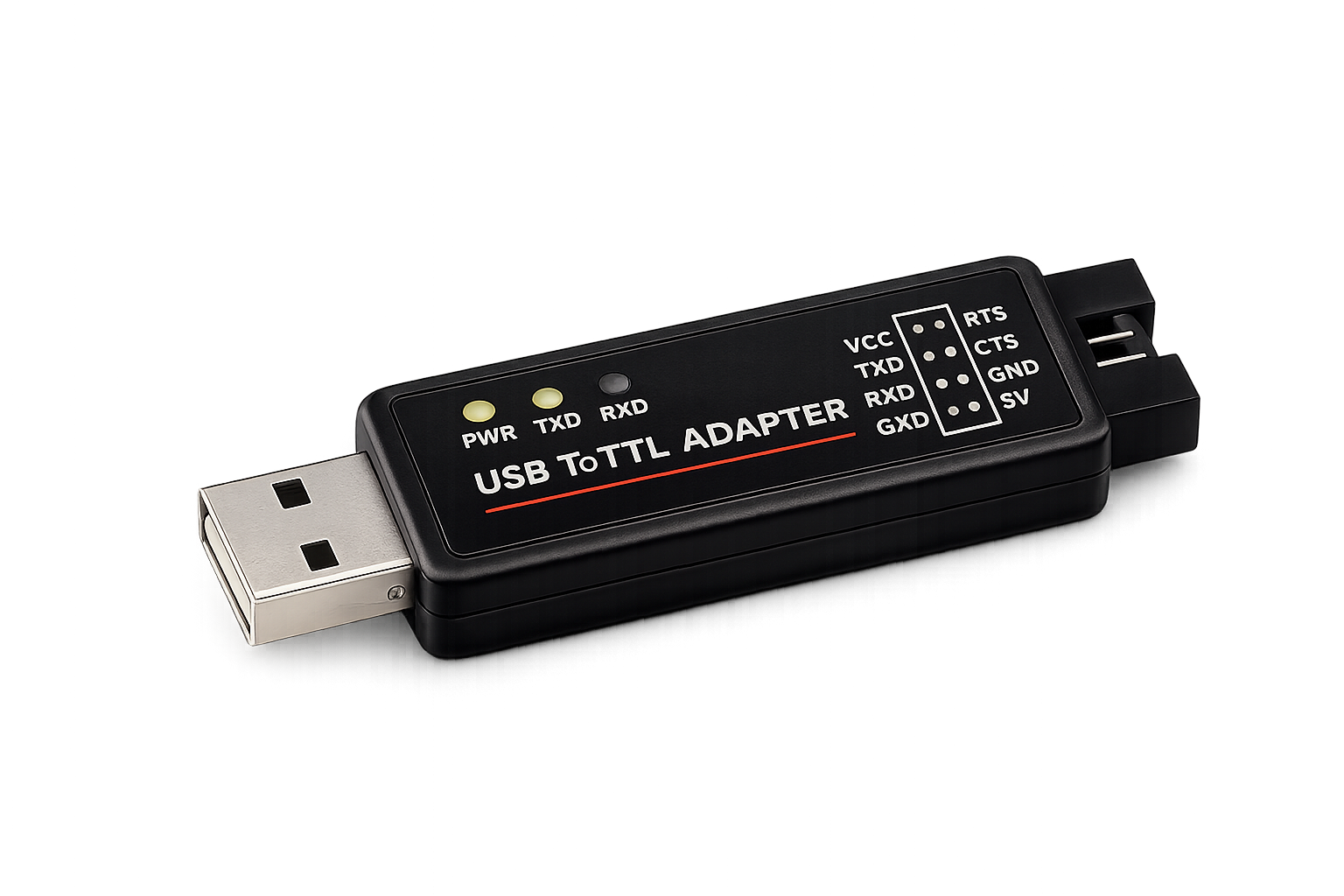

USB TO TTL ADAPTER
Enables direct communication between the evaluation sensor and a PC via USB.
USB CABLE
Provides power and communication between the USB-TTL adapter and the host PC..
Documentation Package
Datasheet, connection information, and evaluation guidance.
Applications

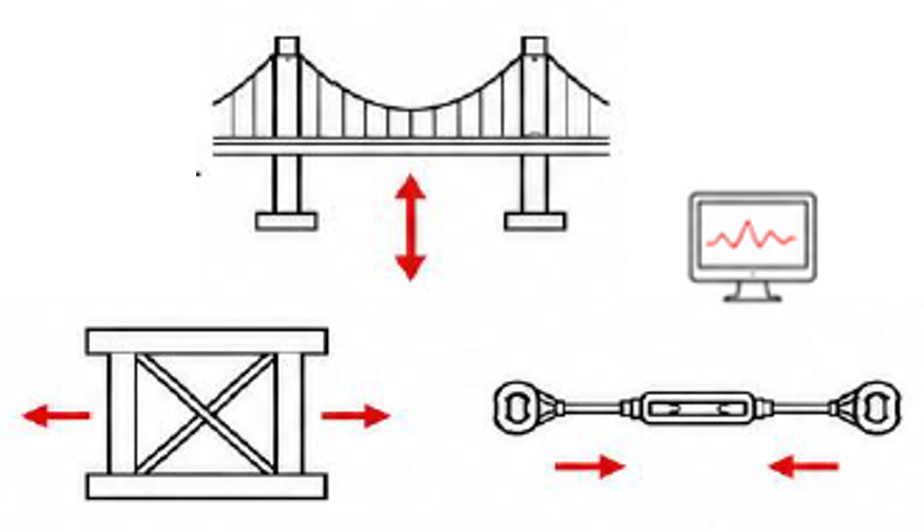

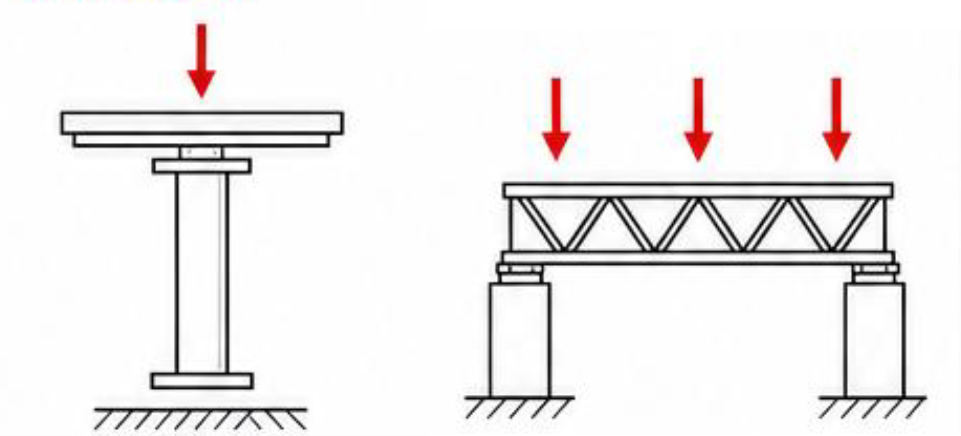

GENERAL FORCE MEASUREMENT
Used to monitor compressive forces in structures and mechanical systems. Typical applications include civil structures, support columns, concrete structures, support beams, and load-bearing components. This helps improve safety, reliability, and preventive maintenance.

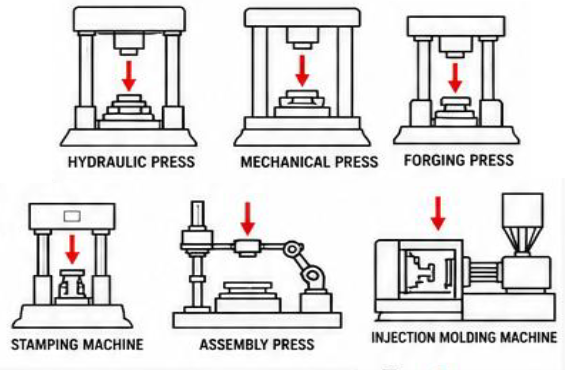

INDUSTRIAL PRESSES & MANUFACTURING MONITORING
Used to monitor compressive forces in industrial presses and manufacturing equipment. Applications include hydraulic presses, mechanical presses, forging presses, injection molding machines, stamping machines, assembly presses, and other manufacturing processes.
REHABILITATION
Integrated into rehabilitation equipment, exercise devices, and assistive technologies to measure patient-applied forces. This enables progress tracking, performance assessment, and precise control of therapy and rehabilitation systems.

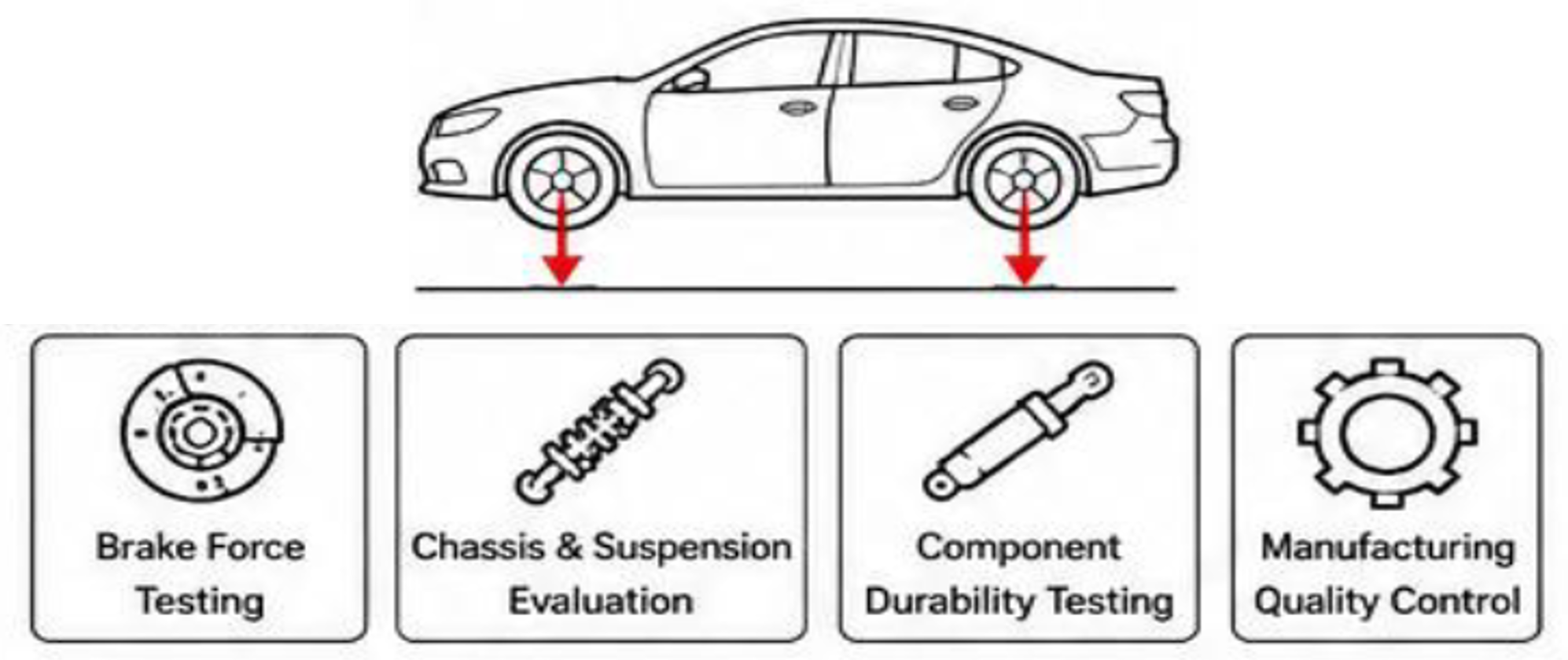

AUTOMOTIVE INDUSTRY
Used for brake force testing, chassis and suspension evaluation, component durability testing, and manufacturing quality control. Accurate force measurement supports vehicle safety, performance optimization, and product validation.
RESEARCH & TECHNOLOGY EVALUATION
The evaluation kit is ideal for universities, laboratories, and R&D departments working on magnetic sensing, stress analysis, predictive maintenance, or non-contact measurement technologies. Open-source PC software allows rapid experimentation and system customization.
Technical Specifications
FORCE SENSOR
Supply Voltage 5 VDC ±5%
Max Supply Current 350 mA
Signal Bandwidth (-3dB)5 Hz
Accuracy < 1 %FS
Hysteresis < 1 %FS
Repeatability < 1 %FS
Linearity < 1 %FS
Sensitivity 4096 (FS) LSB/kN
Operating Temp 0 to +70 °C
SENSING SYSTEM
Sensing Channels 2 Channels
Sampling Rate 40 kSps
Resolution 16-bit
Sensor interface
Connector Open Ended
Interface Type Modbus RTU
Channel A White
Channel B Green
VCC Red
GND Blue
Downloads
datasheet (PDF)
Detailed specifications, electrical characteristics, interface information, and mechanical details.
3D Model (Step)
3D model for mechanical integration, housing development, and CAD validation.
Need Commercial Pricing
Request for Qoutation
Need a customized sensing solution?
AD-TEC also supports OEM integration and application-specific sensor development tailored to your requirements.
